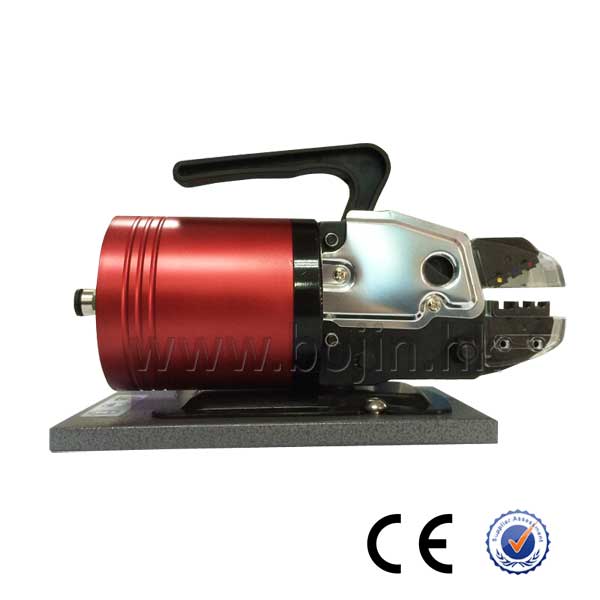

Pneumatic Crimping Machine BJ-1200

Product Description

Specification

* Model: BJ-1200
* Crimping range: non-insulated terminals≤10mm²
* Pre-insulated terminals: ≤6mm²
* Tube-shaped terminal: ≤25mm²
* Output: 13.5kg
* Pressure range: 0.4-1MPa
* Dimension: 230x187x100mm
* Weight: 4KG

* Ferrules,25,35,50mm
* Twin ferrules,2×0.5,1.0,1.5,2.0,2.5,4,6,10mm²
* Insulated O type or Y type terminals,0.5,1.0,1.5,2.0.2.5,4.0,6.0,10.0mm²
* Males or females receptacles,1.0,2.0,2.5,4.0,6.0mm²
* Contact pin for rectangular connector, 1.0,2.0,4.0mm²

Pneumatic Crimping Machine BJ-1200

Pneumatic Crimping Machine BJ-1200

Pneumatic Crimping Machine BJ-1200

Pneumatic Terminal Crimping Machine

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
