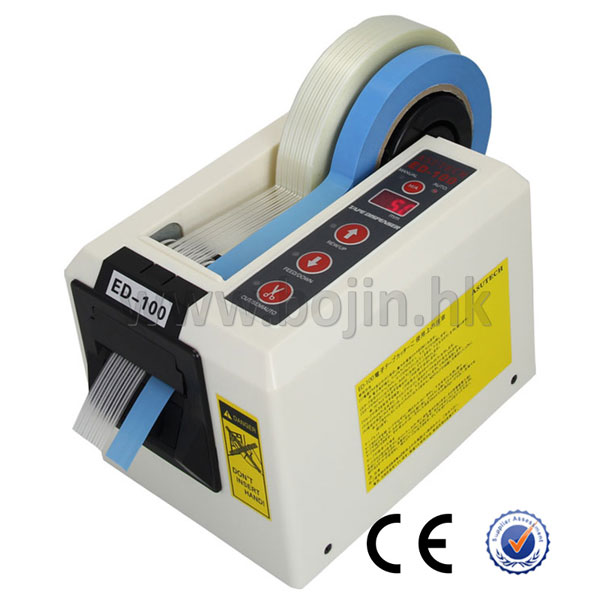

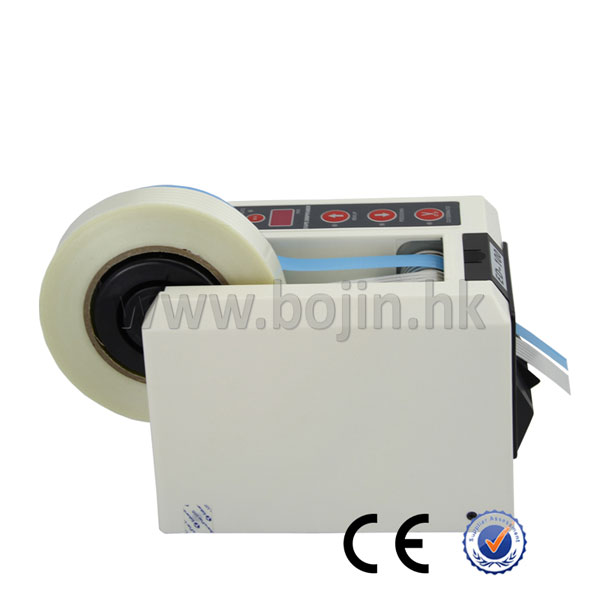

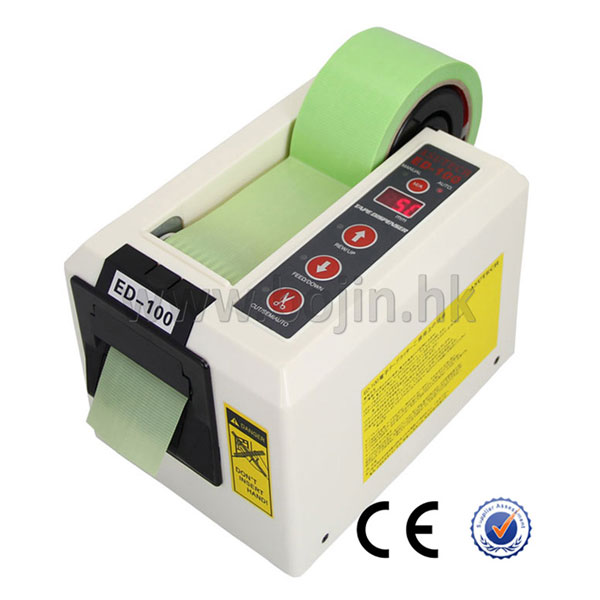

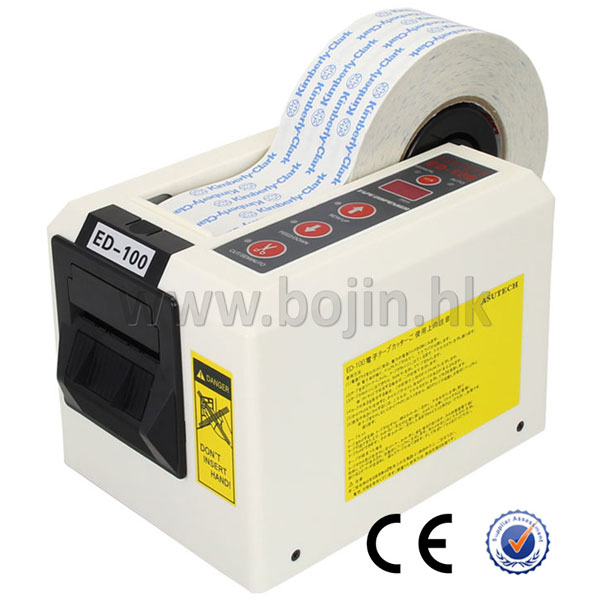

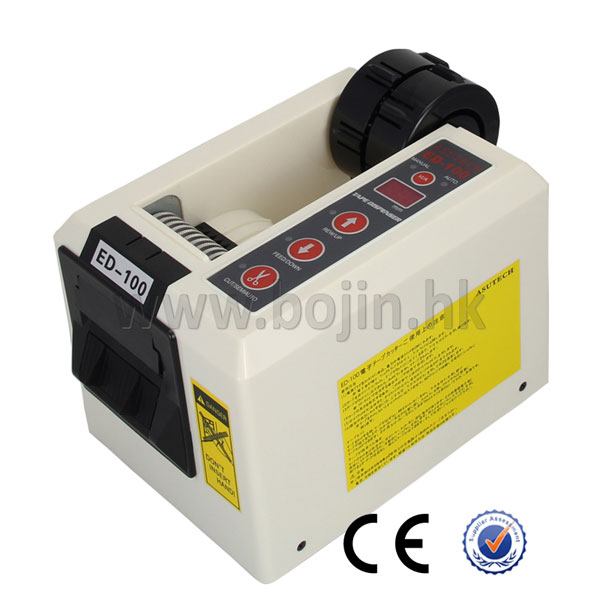

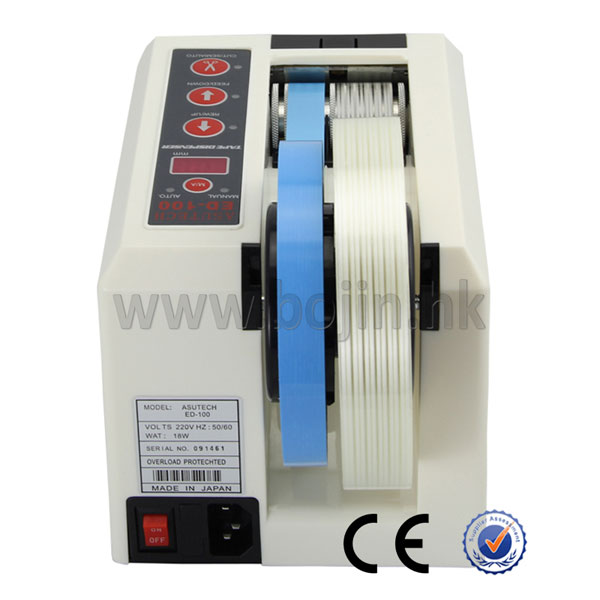

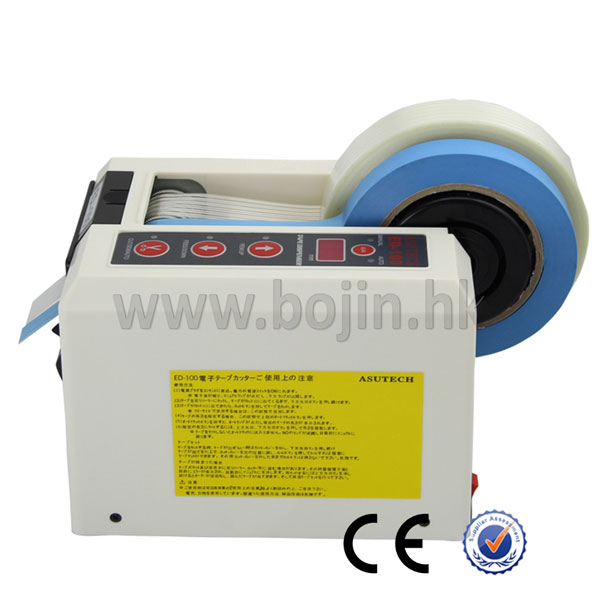

ED-100 Automated Tape Dispenser

Product Description

Operation Video

Features

* Ideal for medium to high production of repetitive taping for industrial applications;
* Program a defined length and automatically advance and cut 2 Tape Rolls at the same time;
* LED Digital length adjustment;
* Blades good for up to over 200,000 cuts (dependent on type of material);
* Cabinet made from flame retardant anti static composite;
* Accuracy of cut length is +/– 1mm (dependent on type of material);
* CE approved.

Specifications

* Acceptable Tape Width: 7mm ~ 50mm
* Cut Length: 15mm ~ 999mm
* Display: 3 digit LED
* Power Supply: AC110V 60Hz / AC220V 50Hz 18W
* Size & Weight: 157*140*235mm; 2.5Kg

Instruction

* Preset a required length first, stick the tape tip to the outlet, and the tape will be cut automatically.
* Auto mode and Manual mode are both available.
* When a long tape is needed, keep pressing “FORWARD” key to the desired length, then press “CUT” key.
* The cutter unit cassette can be removed and replaced easily (tape jamming can be also easily fixed).
* The cutting length is shown on LED display, you can set the cutting length easily by “CM” or “MM” key.

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

ED-100 Automated Tape Dispenser

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us
