Product Description

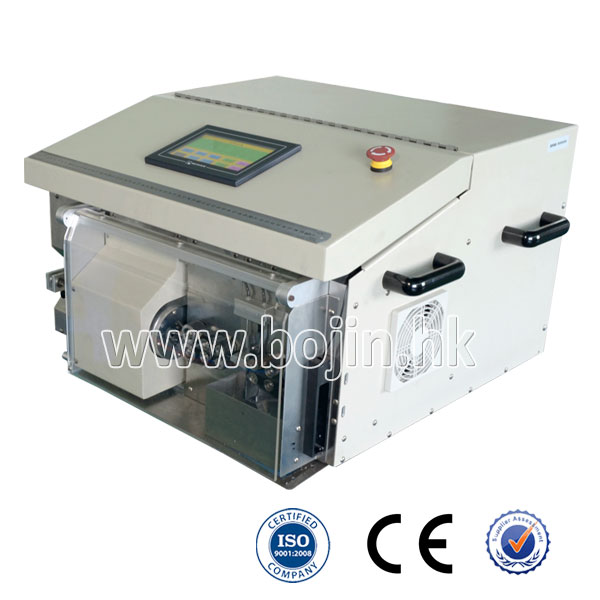

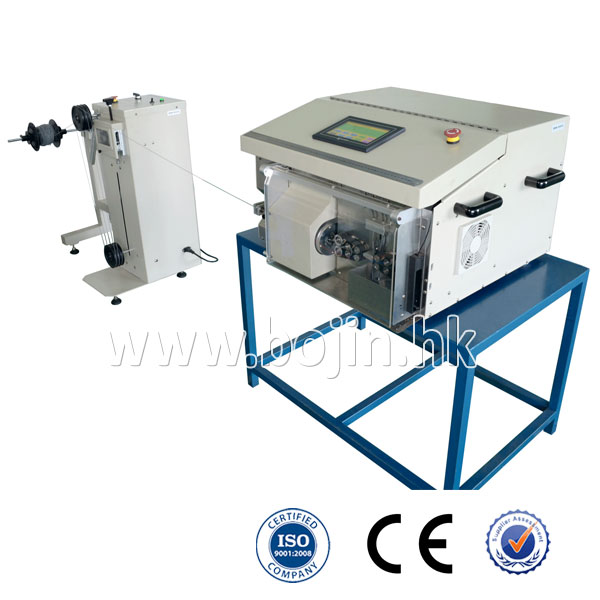

BJ-06TZ Automatic Coaxial Cable Cutting And Stripping Machine
Operation Video
Technique Parameter:
* Name: BJ-06TZ Coaxial Stripping Machine
* Cable Type: coaxial-cable
* Memory: 40
* LCD Display size: 153mm*85mm English & Chinese Panel
* Max. Cable Dimater: up to 4mm & 5.5mm (0.64-4.0mm) (1.0-5.5mm)
* Cutting depth of the unit: 0.01mm
* Max cutting length: 99,999.9(mm)
* Max. peeling length: Tail & Right: max200mm, Head & Left: Max45mm
* Max. peeling stratums: 6
* Drive mode: Motor/ Ball screw drive(Japan)
* Display: Touch sn
* Blade: 4 pieces Material:imported tungsten steel(Switzerland)+ high-speed steel
* Centering slab: 4 pieces Material:imported tungsten steel
* Trapper: Automatic self aligning,motor drive, the clamping process control
* Productivity: 500-800pcs/h(depend on the cable length and type)
* Power: AC220V/110V 50/60HZ 700W
* Weight: 100Kg
* Boundary dimension: 760*700*400mm
* Work environment: -5—45°C,moderate dry,non-shake
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
